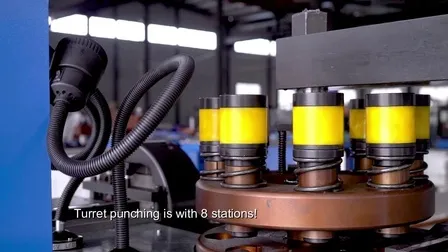

Manual Multifunction Busbar Processing Machine
Main Functions And Features:1. The multifunction busbar processing maching is the patented product developed by our comp
Basic Info.
Model NO. | 8p |
Type | Press Brake |
Punching Unit | H:15mm |
Max Punch Hole | 32 |
Working Voltage | 380 V |
Number of Motors | 3 + 1 |
Transport Package | Export Standard Free-Fumigation Wooden Case |
Specification | Machine Weight: 1280kg; Motor Number: 3+1 |
Trademark | BEIENE |
Origin | Qingdao, China |
HS Code | 8462 |
Production Capacity | 200 Sets Per Month |
Product Description
Main Functions And Features:1. The multifunction busbar processing maching is the patented product developed by our company.Comparing with the traditional busbar processing machine, this product has the following advantages and features:2. The punching and shearing units adopt round integral structure, with novel and unique design rendering reasonable force bearing, and thus effectively guarantees the long-term use without deformation;3. The bending unit uses integral structure and CNC angle control mode, allowing easy operation and high accuracy; 4. This machine adopts the design approach of double-layer work bench, truly realizing the simultaneous working of three stations without mutual interference;5. The machine is provided with an automatic oil charge and discharge system, easy to operate, with the hydraulic oil charged into the oil tank via a filter so as to protect the entire hydraulic system from contamination;6. This machine is provided with stainless steel oil tank to protect the hydraulic oil from corrosive deterioration, and extend the service life of hydraulic oil and the seals; PLC control that is stable and reliable.7. Swappable dies offering extreme convenience;8. PLC control that is stable and reliable.
Configuration
Dimension of platform(mm) | Machine Weight (Kg) | Number of Motors | Total motorpower KW) | Working voltage(V) | Number of hydraulic Units(Mpa) | Control Mode |
Layer11500×1200 | 1280 | 3+1 | 11.37 | 380 | 3×31.5 | PLC+CNCangle bending |
Layer2 840×370 |
Main Technical Parameter
Description | Material | Maching H × W (mm) | Maximum punch | Max Output Force (KN) |
Punching Unit | Copper/Aluminum | H:15 | ¢32(Thickness≤10mm)¢25(Thickness≤15mm) | 350 |
Shearing Unit | Copper/Aluminum | Punching and shearing:12×160Simple shearing:15×160 | 350 | |
Bending Unit | Copper/Aluminum | Level bending:15×160Vertical bending:12×120 | 350 |
1) Applying Anti-Rust Oil2) Covering with stretch film3) Covering aluminum air bag4) Vacuuming air bags5) Boxing all the pallet6) Loading to the container
